DF-912B
Mountain Foldable Bike

CHANGE BIKE

Other Folding Bikes

Folding mechanism design

• The Full Triangular Structure Design, no cutting or Perforating tube.
• Obtained Innovation patents Internationally.
• Double-Quick Release. (Including second safety-locking device)
• No any mechanical part on top tube, no fear of staddling the bicycle.
• Down tube is a key support of a bike. Without down tube, the bike can't withstand the heavy. It is also able to prevent splashing water directly on bottle.

• Use folding boxes or single-beam designs.
• Does not comply with the principles of mechanics.
• Defective structure by cutting or perforating tubes.
• No down tube-the frame becomes weaker. Single locks employed.
• Folding mechanical parts designed on top tube or aside, it is easy to hook the clothing or interference when straddling the bicycle.

Frame geometry

• The folding design doesn't destroy the frame geometry, so it can be applied to various folding bikes (eg: mountain or road bikes) to achieve the best frame geometry.
• 27.5 inch full size bike is low center of gravity, allowing greater stability.

• The folding design limited the frame geometry, can only reach approximate, not the best frame geometry.
• Single-beam design has long lever arm which fits lower tolerance small folding bike. Yet, it is high certer of gravity, unstability, easy to fall down when riding downhill rapidly.

Safety certification

• It is the ONLY folding frame design to achieve strictly MTB frame safety test, ISO 4210 certification.

• Frame and Front Fork Assembly-Impact Test (Falling Mass)
• Frame and Front-Fork Assembly-Impact Test (Falling Frame)
• Fatigue Test with Pedaling Forces
• Fatigue Test with Horizontal Forces
• Fatigue Test with Vertical Forces

• Unable to pass the tests.

Frame size availablity

• Multi-size frame available (17", 19", 21") to meet people of different height and ergonomic.

• Most folding design can only make one-size folding bike, does not match the ergonomic.

Folded size

• Smallest (Compact)
  Front triangle frame enables folded ( close to a 27.5-inch) that can be easily placed in the trunk and the front wheel can be fixed on special natch to prevent scratching the bike body.

• Bigger
  Part of the front triangle frame can not be folded.

Can stand after folding?

• Able to Stand after folding.

• Several Designs
  Unable to Stand after folding.

Automatical chainwheel protection device (Chainwheel won't touch ground after folding)

• It is the only one to have chainwheel protection device. Seat tube automatically elongates to avoid chainwheel hitting ground after folding. While riding (unfolded), it automatically retracts to avoid affecting the ride. These are all the automatic reaction, without any additional actions during folding.

• No Chainwheel Protection device.
• U-shaped bracket of chainwheel protection is welded. It would be hitting something when riding.

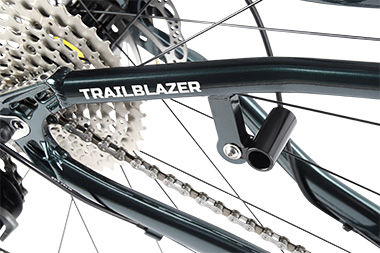

Special notch hook design

• There is a special natch designed at chain stay to fix the removed front wheel. The entire folded unit can be carried with one hand.

• No fixed front wheel design, needs to carry it by another hand.

The weight of the bike

• By Triangular geometric mechanics to achieve the strength, reduce bike weight to less 10KG.

• Single beam tube design doesn't match Triangular geometric mechanics so it has to informce pipe thickness and hings, and increase tube diameter lead to bikes become heavier.

Part compatibility

• 100% part compatibility. Replace Change frame, your bike can become MTB folding bike.

• Many non-standard (customized) folding mechanisms makes the difficulty in obtaining spare parts, and causes higher maintenance costs.

Storage design of carry bag

• The carry bag is waterproof and double fabric protection design at the bottom to increase load.
• Folded dimensions close to a saddle size, like a small pouch.

• Carry bag normally is designed to be a big bag. When you carry a folding bike to go out for riding, you may find no place to put the bag.
